REES-140P 115V Electronic Centrifugal Switch Motor Accessory

مكان المنشأ الصين
اسم العلامة التجارية ZOZHI
إصدار الشهادات CE,CCC,ISO9001
رقم الموديل Rees-140p
الحد الأدنى لكمية 2 قطعة
الأسعار USD8.24piece
تفاصيل التغليف حالة CTNS/القشرة
وقت التسليم 14 يوم العمل
شروط الدفع T/T ، L/C.
القدرة على العرض 10000 قطعة لكل 30 يومًا

اتصل بي للحصول على عينات مجانية وكوبونات.

ال WhatsApp:0086 18588475571

ويتشات: 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.

x
تفاصيل المنتج
درجة حرارة 0-70 إصدار الشهادات CE
الحد الأقصى الحالي 80A/3S تبديل التكرار 2S ON/2S قبالة الحد الأقصى
الجهد االكهربى 115 فولت
إبراز

115V electronic centrifugal switch,motor accessory centrifugal switch,REES-140P motor switch

,

motor accessory centrifugal switch

,

REES-140P motor switch

يمكنك تحديد المنتجات التي تحتاجها والتواصل معنا في لوحة الرسائل.
اترك رسالة
منتوج وصف

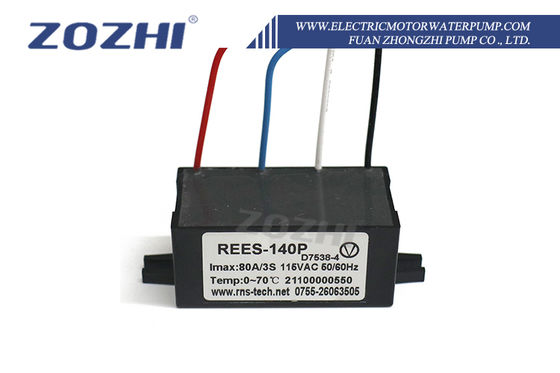

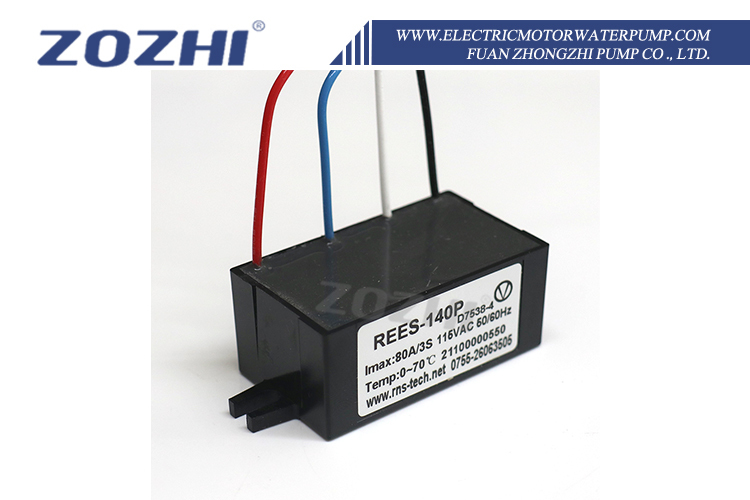

REES-140P 115V Electronic Centrifugal Switch Motor Accessory
Product Overview
The REES-140P Electronic Centrifugal Switch is a solid-state replacement designed for fans and blowers, eliminating common mechanical switch failures while enhancing reliability and performance. Traditional single-phase AC motors using mechanical centrifugal switches often suffer from tolerance build-up, mechanical fatigue, vibration, and electrical sparking. Our Electronic Centrifugal Switch (ECS) monitors speed, voltage/current, and phase to precisely control switching operations.
Key Features
  • Compact design with small package size
  • Exceptional durability with 1 million cycle lifespan
  • Universal compatibility with auto-matching for different motors
  • Wide voltage range: 115V (90V-137V) or 230V (198V-264V)
  • 50Hz/60Hz operation capability
  • Silent operation with no switching noise or contact trembling
  • High compatibility with both general-purpose and application-specific motors
  • Simple installation and maintenance, fits standard motor frames
  • Epoxy resin or silicone rubber sealed construction resists dirt, dust, moisture, and vibration
  • Automatic starting capacitor discharge
  • Certified to ROHS, CE, and UL standards
Technical Specifications
Parameter Value Unit Package (mm)
Rated Voltage 115V/230V V AC
Max. Start Peak current (20ms, TC=25℃) 100A (RECS-105/205)
200A (RECS-120/220)
400A (RECS-140/240)
600A (RECS-160/260)
A P: 72L*31W*23H P: 72L*31W*23H S: 52L*50W*24H P: 72L*31W*23H
C: CAP Case 46Dia*86L
Max. Start Peak current (3.0S, TC=25℃) 30A (RECS-105/205)
60A (RECS-120/220)
120A (RECS-140/240)
180A (RECS-160/260)
A
Initial switch-on delay time 80 mS
Restart delay time (TC=25℃) 5 S
ON/OFF Frequency 0.2 Cycle/S
Ambient air temperature 0-70
Dielectric strength (between case and lines) ≥2500 V DC
REES-140P 115V Electronic Centrifugal Switch Motor Accessory 0
Model Specifications
Model Type Volt Range Max peak current Imax(3s) Power Range
RECS-205P 160-264VAC 30A Ima≤15A 0-550W
RECS-220P 160-264VAC 60A Ima≤35A 600-2200W
RECS-240P 160-264VAC 120A Ima≤75A 2200-4300W
RECS-105P 85-132VAC 30A Ima≤15A 0-330W
RECS-120P 85-132VAC 60A Ima≤35A 300-1100W
RECS-140P 85-132VAC 120A Ima≤75A 1100-2200W
RECS-020T 85-264VAC 60A Ima≤35A 110V 300-1100W
220V 600-2200W
